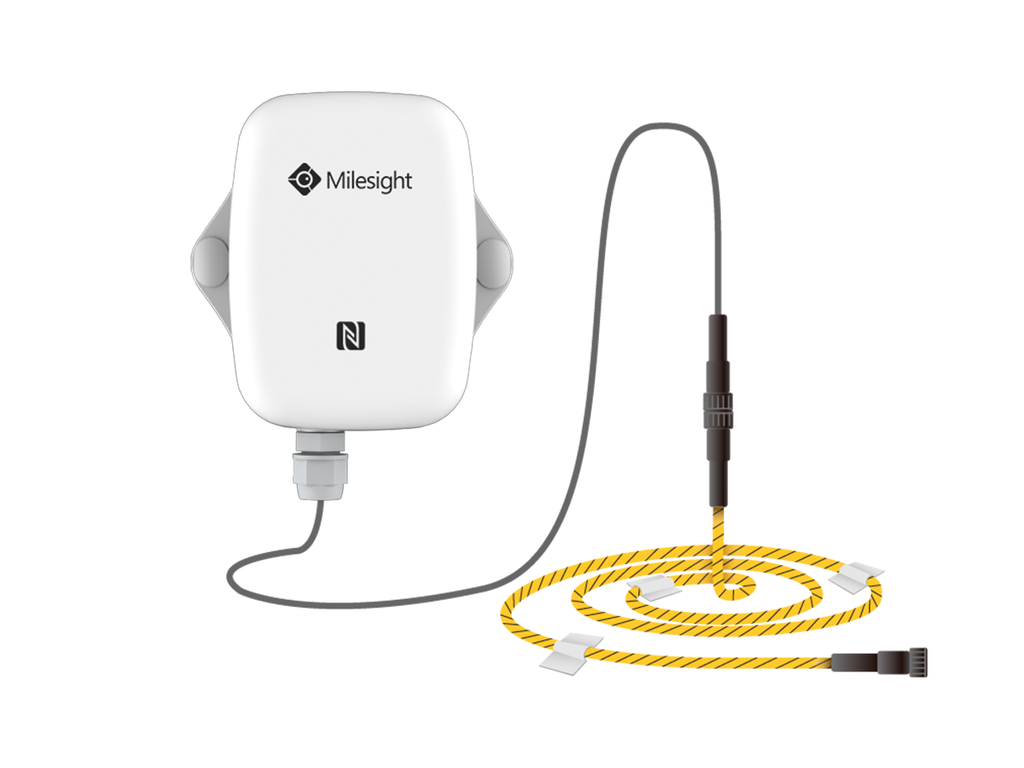

Milesight EM300-ZLD-868M Temp/Humidity sensor with water leak/liquid detection sensor Lorawan
Milesight EM300-ZLD-868M 868 MHz (versión UE)
LoraWan 868 MHz outdoor liquid leakage sensor in zone.
The EM300-ZLD sensor detects the presence of water and other liquids and transmits an alarm via LoRaWAN® technology. It detects liquids in zones via a long cable. Its low power consumption allows it to operate for up to 5 years on a 4000mAh battery.
By combining Milesight LoRaWAN and Milesight IoT Cloud, users can manage sensor data remotely and receive alarms via mobile App.
Avoid water damage
By instantly detecting water leaks, the EM300-SLD/ZLD will help prevent potential water damage to property or assets.
Temperature and humidity monitoring
-
-30°C a 70°C
-
0% to 100% RH
Adopts Sensirion industrial grade digital sensor, which provides high accuracy of ±0.3 temperature and ±3% relative humidity.
Waterproof IP67
Equipped with an IP67-rated housing to suit more application scenarios
Energy consumption
-
Easily replaceable battery with up to 10 years battery life
-
Battery ER18505 4000 mAh Li-SOCl2
-
Double battery holder (one battery by default)
*A LoRaWAN gateway will also be needed.
Main features:
-
Liquid leak detection
-
Probe and rope type
-
Waterproof IP67
-
LoRaWAN wireless
-
5/10 years battery life
-
NFC to configure
| EM300-SLD-868M | ||
|
LoRaWAN®
|
Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 17dBm (470) / 16dBm (868) / 20dBm (915) | |
| Sensitivity | -137dBm @300bps | |
| Mode | OTAA/ABP Class A | |
|
Leak Detection
|
Type
|
EM300-SLD: probe, spot detection |
| EM300-ZLD: rope, zone detection | ||
|
Cable Length
|
EM300-SLD: 1.5 m | |
| EM300-ZLD: 3 m | ||
| (Optional cable lengths of hundred meters available) | ||
|
Temperature
|
Measuring Range | -30°C to+70°C |
|
Accuracy
|
0~70°C: ±0.3°C | |
| -30~0°C: ±0.6°C | ||
| Resolution | 0.1°C | |
|
Humidity
|
Measuring Range | 0%~100% RH |
|
Accuracy
|
±3% (10~90%RH) | |
| ±5% (Other ranges) | ||
| Resolution | 0.10% | |
|
Physical Characteristics
|
Power Supply | ER18505 Li-SOCl2 4000 mAh (8000 mAh optional) |
| Battery Life | ≧ 5 years ( for 1 battery) | |
| Operating Temperature | -30°C to 70°C | |
| Ingress Protection | IP67 | |
| Dimension | 88 × 87 × 27 mm | |
| Mounting | Wall (screws or 3M adhesives) | |
